Dingli DL22ERT

Electric self-propelled articulated boom

  • Long battery life
  • Rough terrain tyres
  • 360° turret rotation
  • Four-wheel drive (4WD)
  • Indoor and outdoor use
  • Wind rated for outdoor use


Hire Prices

Select a hire period:

Qty of machines:

Request Price

If you have a MyGTA account you can login to see your hire rates immediately online.

Contract Hire
For Sale





All Prices Exclude VAT

Enquire Now

Contact Hire

From Just


Per Month

Enquire now

Request Call Back
Book a free site survey

Dingli DL22ERT

This electric self-propelled articulated boom by Dingli features a maximum working height of 22.21m and a maximum payload of 230kg. This electric self-propelled articulated boom is suitable for large-scale indoor or outdoor applications such as airports, shopping malls, etc.

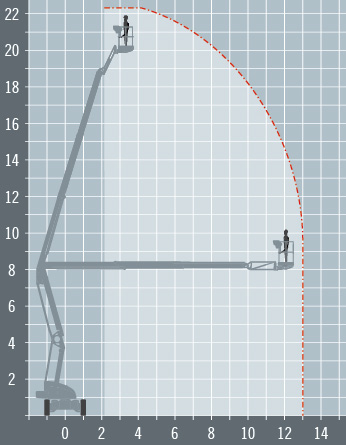

Reach Height
22.21 m 72' 10"
Platform Height
20.21 m66' 4"
Up and Over
8.13 m26' 8"
Horizontal Reach
12.72 m41' 9"
Stowed Height
2.49 m8' 2"
Length x Width
9.55 m x 2.49 m31' 4" x 8' 2"
Platform Size
0.79 m x 1.83 m2' 7" x 6' 0"
10100 kg22267 lb
Lift Capacity
230 kg507 lb
