ATN Zebra 16S

Auto stabilising articulated boom

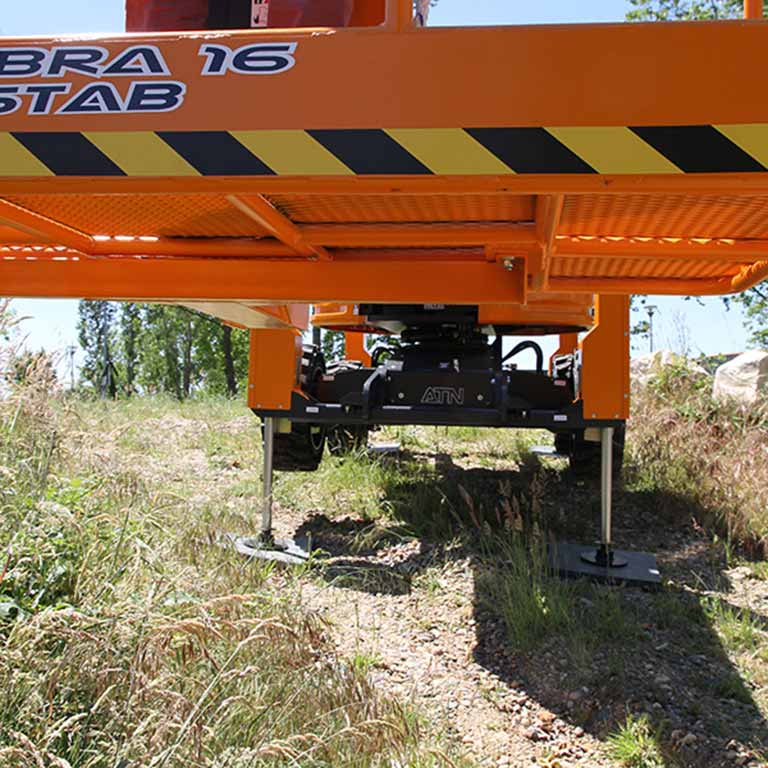

  • Automatic self levelling outriggers for flexibility on varied terrain sites
  • Outstanding horizontal reach
  • High ground clearance
  • 45% gradeability


VIEW FULL SPECIFICATIONS
VIEW ALTERNATIVE MACHINES

Hire Prices

Select a hire period:

Qty of machines:

Request Price

If you have a My GTA account you can login to see your hire rates immediately online.

Contract Hire
For Sale

NEW FROM

£44,000

USED FROM

£17,600

REFURBISHED FROM

POA


All Prices Exclude VAT

Enquire Now


Contact Hire

From Just

£XXX

Per Month

Enquire now

Request Call Back
Book a free site survey

ATN Zebra 16S

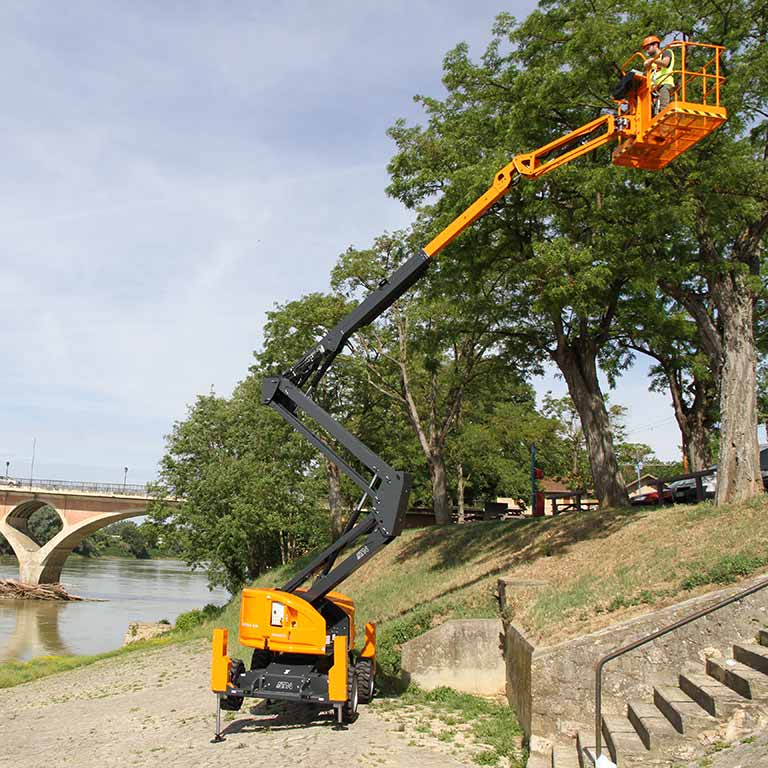

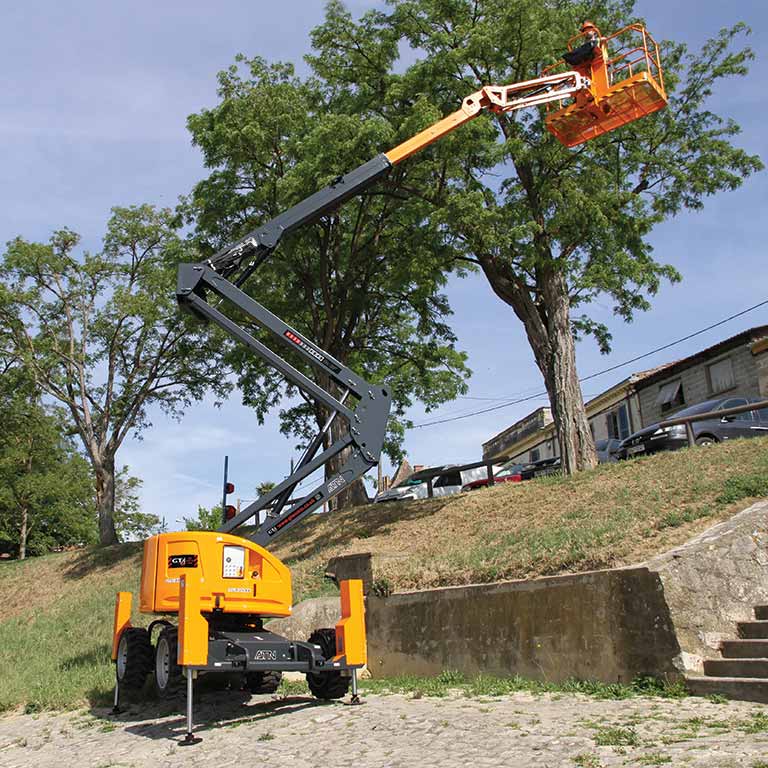

This unique diesel articulating boom lift has automatic stabilisers actionable upon request directly from the basket that enables the operator to move freely around the jobsite, overcoming slope constraints when needed. The perfect solution for confined spaces where floor space doesnt allow for the use of traditional static outrigger stabilised platforms.

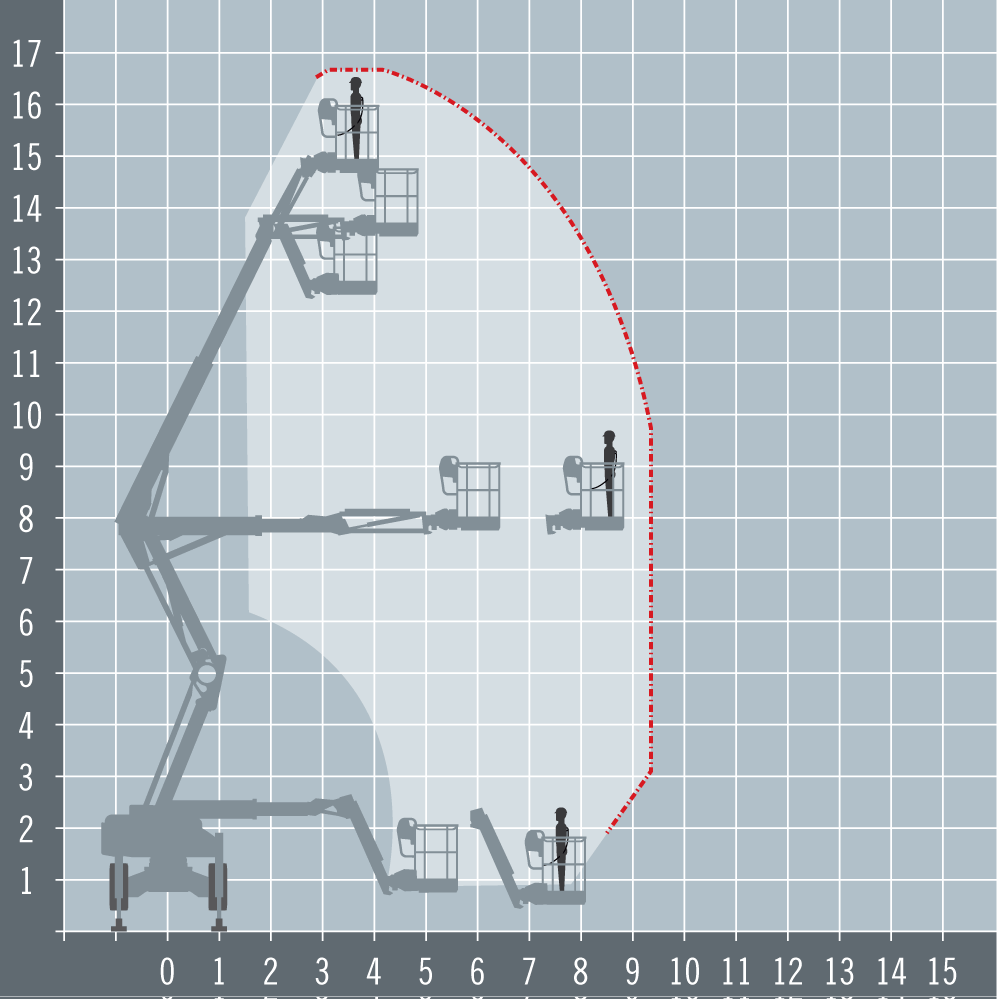

Reach Height
16.8 m 55' 1"
Platform Height
14.8 m48' 7"
Up and Over
7.4 m24' 3"
Horizontal Reach
9.3 m30' 6"
Stowed Height
2.25 m7' 5"
Length x Width
7.7 m x 2.24 m25' 3" x 7' 4"
Platform Size
1.8 m x 0.86 m5' 11" x 2' 10"
Weight
8050 kg17747 lb
Lift Capacity
230 kg507 lb
