Manitou MAN 100 VJR

Compact mast boom for restricted spaces


  • 360° Turret rotation
  • 3m horizontal extension, covering more working areas
  • 25% gradeability
  • Non marking solid tyres


VIEW FULL SPECIFICATIONS
VIEW ALTERNATIVE MACHINES

Hire Prices

Select a hire period:

Qty of machines:

Request Price

If you have a MyGTA account you can login to see your hire rates immediately online.

Contract Hire
For Sale

NEW FROM

£24,549

USED FROM

POA

REFURBISHED FROM

POA


All Prices Exclude VAT

Enquire Now
Downloads


Contact Hire

From Just

£XXX

Per Month

Enquire now

Request Call Back
Book a free site survey

Manitou MAN 100 VJR

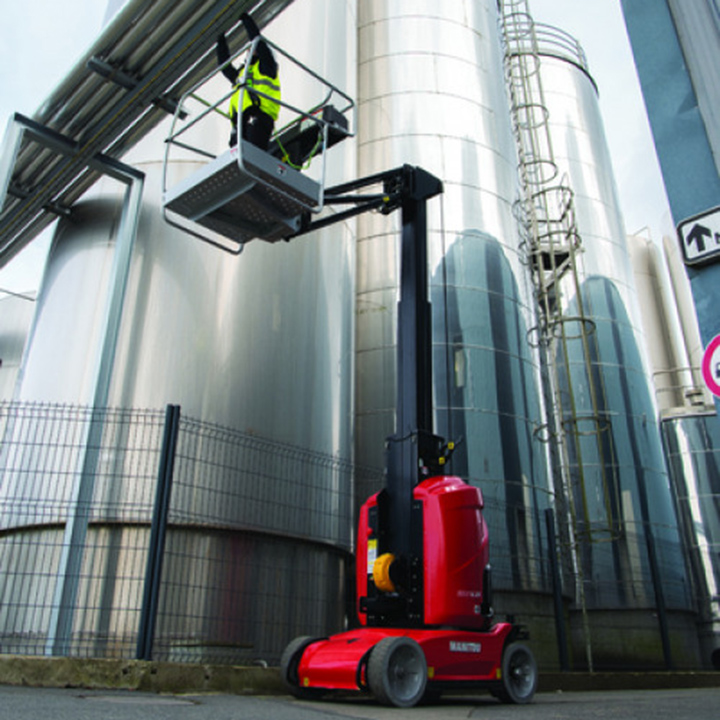

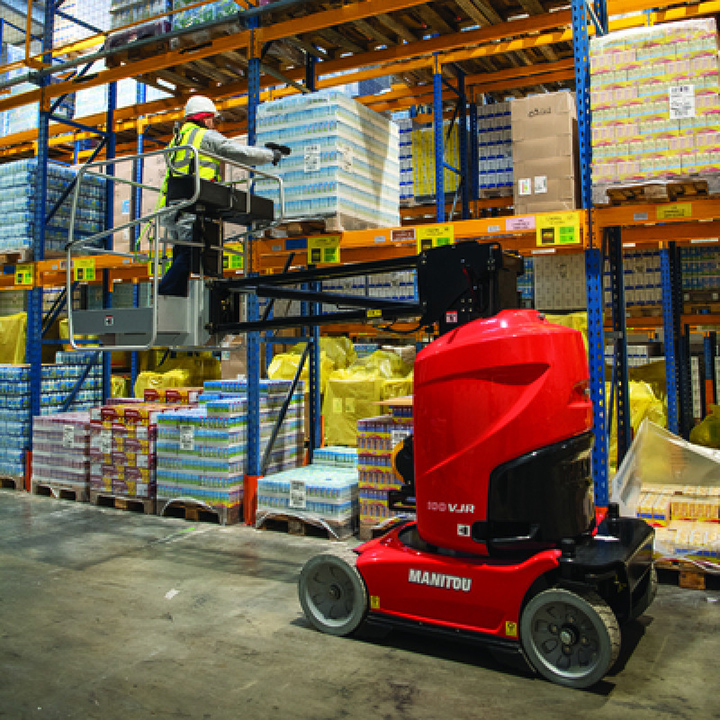

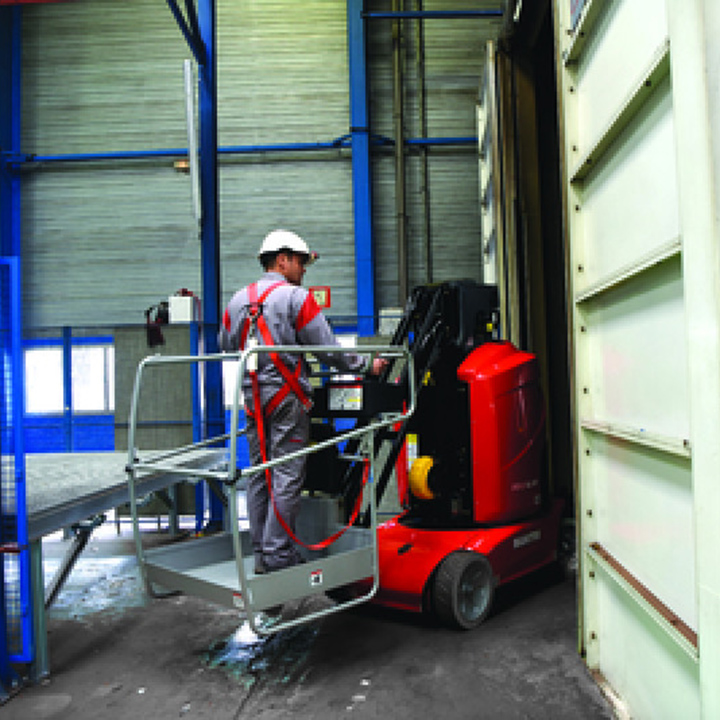

The Manitou 100VJR is a compact electric mast boom that is ideal for use when you need outreach in narrow aisles, such as for warehouse maintenance or in supermarkets to reach over the tops of racking/shelving. Compact and easy to handle the MAN100 VJR can easily travel through the majority of industrial doors. The turret system rotates 360 degrees providing great flexibility for operators.

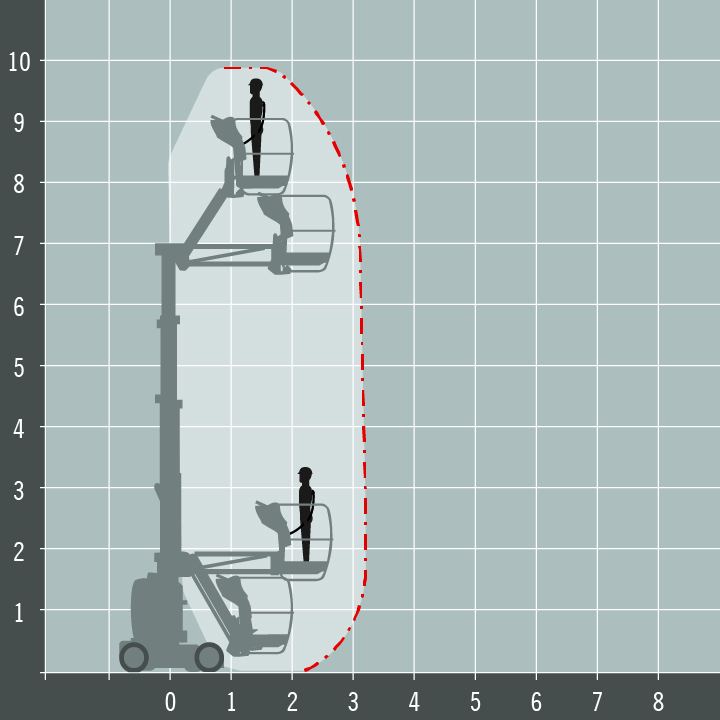

Reach Height
9.85 m 32' 4"
Platform Height
7.85 m25' 9"
Horizontal Reach
3.15 m10' 4"
Stowed Height
1.99 m6' 6"
Length x Width
2.8 m x 0.99 m9' 2" x 3' 3"
Platform Size
0.93 m x 1.11 m3' 1" x 3' 8"
Weight
2650 kg5842 lb
Lift Capacity
200 kg441 lb
